The ROP Shop | Pressure Washer Pump w/Keyway for Himore 309515003, 308653071, Max 3000 PSI

Check Price

• Brand: The ROP Shop
• Manufacturer: The ROP Shop

Features

• The ROP Shop replacement Pressure Washer Pump w/ Keyway for Himore 309515003, 308653071, Max 3000 PSI
• Specs – Maximum Pump Pressure: 3000 PSI. Maximum Pump Flow: 2.5 GPM. Maximum Pump Speed: 3450 RPM. Pump Shaft Diameter: 3/4" Shaft. Pump 4 Bolt Pattern: 2 5/8" Center to Center between Outer Holes. Maximum Pump Water Temperature: 140° F. Pump Inlet Connection Type: Standard Garden Hose. Pump Outlet Tube Connection: 22mm Male. Keyway Width: 3/16". Keyway Length: 1 1/8". Refer to images 2 & 3 for more information

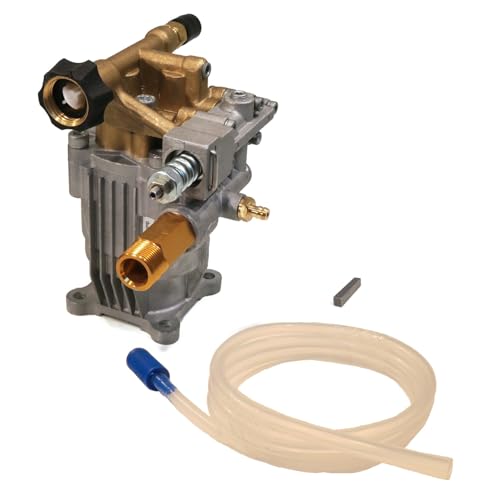

• Includes – (1) Horizontal Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve, Outlet Tube & (1) Keyway; comes as shown in the first image
• This pump mounts horizontal and can face any direction that allows the hose connections to be accessible. Pump needs at least 6HP to handle PSI. Pump head CANNOT be flipped, but pump can be mounted in different directions. Thermal relief valve comes pre-intalled. This is a sealed unit, no oil maintenance required. Brass outlet tube MUST be removed if quick-connect is being used
• In some cases, original pumps have rounder bases, this pump WILL still work, but the engine area around the shaft will not be completely covered. This will NOT affect the performance of the pump or cause any damage to the shaft

Manufacturer Info

• PartNumber: 800101_1
• Model: 800101_1

Product Info

• Color: Brass
